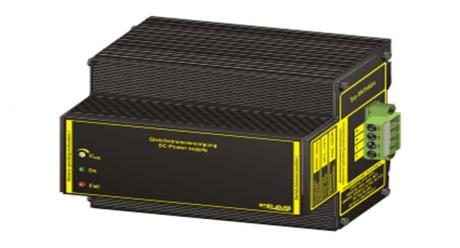

Product information

Switch-mode controller with low residual ripple
Output separated according to VDE 0551
Overload- and open circuit protected
Short circuit proof
Operating status shown by LED
Parallel connection possible
Suitable for the tropics - epoxy resin casted
Safety acc. to VDE, EN, UL, CSA

Technical data

Input voltage (VAC): 85-270 VAC (0-400 Hz)

Input voltage (VDC): 120-400 VDC

Output voltage: 24 VDC

Adjustment range: 22.5-30.0 VDC

Output current: 5.0 Amp.

Power: 120.0 Watts

Efficiency: 89%

Residual ripple:< 25 mVPP

Operating temperature range: -40°C / +80°C

Mounting: on rails acc. to DIN 46277 or wall mounting with screws

Dimensions (WxHxD): 117.0 x 90.0 x 78.0 mm

Weight: 1.40 kg
