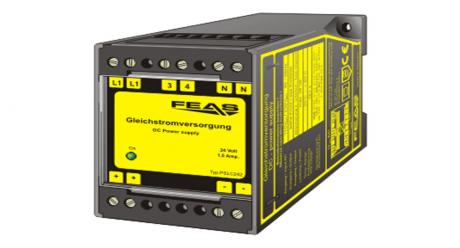

Product information

Output separated according to VDE 0551
Smoothed output
Overload- and open circuit protected
Extra low safety potential PELV (EN 60204), SELV (EN 60950)
Short circuit proof
Operating status shown by LED
Parallel connection possible
Suitable for the tropics - epoxy resin casted
Safety acc. to VDE, EN, UL, CSA

Technical data

Input voltage (VAC): 115 VAC / 230 VAC (45-66 Hz)

Output voltage: 24 VDC

Output current: 1.5 Amp

Power: 36.0 Watts

Efficiency: 92%

Residual ripple:< 3%

Operating temperature range: -30°C / +80°C

Mounting: On rails acc. to DIN 46277 or wall mounting with screws

Dimensions (WxHxD): 55.0 x 75.0 x 110.0 mm

Weight: 0.84 kg
