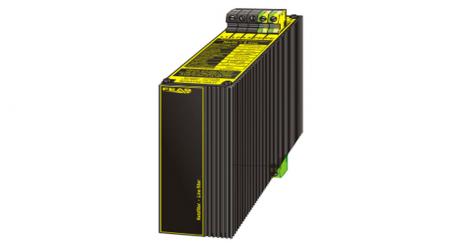

Product information

High insertion loss over a broad frequency range
compact enclosure design
Using aluminium enclosure in order to improve the heat conduction
Suitable for the tropics - epoxy resin casted
Safety acc. to VDE, EN, UL, CSA

Technical data

Rated voltage: 520 VAC

Rated current: 3 x 30.0 A

Inductance: 3 x 1.4mH + 3 x 10µH

Capacity: 3 x 2.2µF + 6 x 1.0µF (X2) and 2 x 0.47µF (Y2)

Operating temperature range: -50°C / +85°C

Mounting: wall mounting with screws

Dimensions (WxHxD): 51.0 x 181.0 x 160.5 mm

Weight: 2.50 kg
