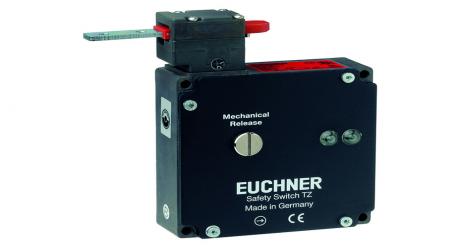

Features

• Auxiliary release on the front
• Two LED indicators, red and green
• Actuating head fitted left

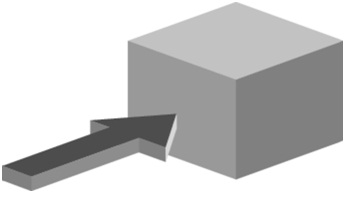

Approach direction

Horizontal

Can be adjusted in 90° steps

Solenoid operating voltage and LED function display

• 110 V AC -15%, +10%

Guard locking type

TZ1 Closed-circuit current principle, guard locking by spring force. Release by applying voltage to the solenoid.

Switching element

SK For monitoring the door/actuator position

ÜK For monitoring the guard locking (built-in solenoid)

2131H Slow-action switching contact 3 NC + 1 NO

3131H Slow-action switching contact 2 NC + 2 NO

Auxiliary release

Is used for releasing the guard locking with the aid of a tool. A sealing wire can be fitted to protect against tampering. Lead seal kit and tool included (already pre-assembled on versions with plug connectors).
