High-Performance Distance Sensors

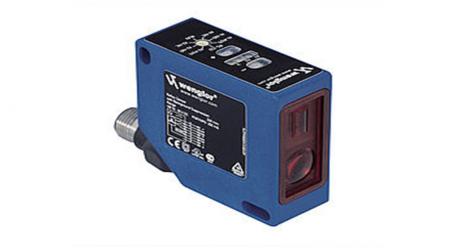

CP24MHT80

• High resolution: 20 µm (resolution-mode)

• Linearity: 0,1 % (resolution-mode)

• Measured value independent of material, color and brightness

• Response time: < 660 µs (speed-mode)

• Zoom function

These sensors work with a high-resolution CMOS line and DSP technology and determine distance using angular measurement. As a result, material, color and brightness related measurement differences are virtually eliminated. Integrated analogue output can be configured for voltage 0...10 V (10...0 V) or current 4...20 mA (20...4 mA).

Continue Enquire now
